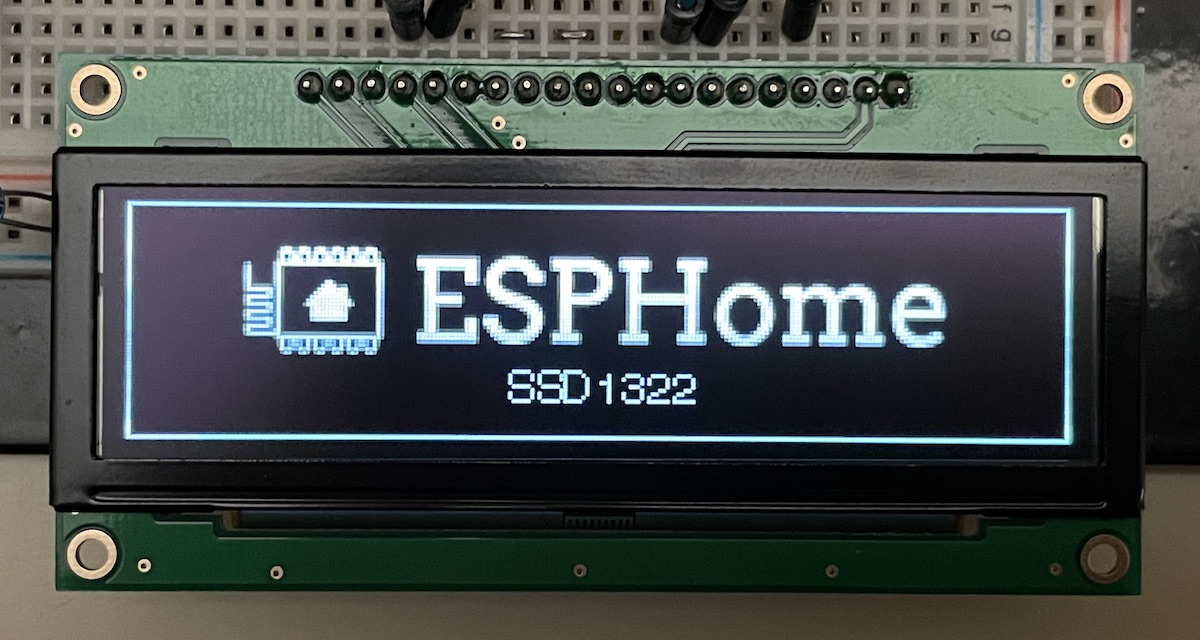

SSD1322 OLED Display
ssd1322_spi Component
The ssd1322_spi display platform allows you to use
SSD1322 (datasheet,
Newhaven Display)
displays with ESPHome. Note that this component is for displays that are connected via the 4-Wire SPI bus.
Connect CLK, DIN, CS, DC, and RST to pins on your ESP. For power, connect VCC to 3.3V and GND to GND.
# Example configuration entry
spi:
clk_pin: D5
mosi_pin: D7
display:
- platform: ssd1322_spi
model: "SSD1322 256x64"
reset_pin: D0
cs_pin: D8
dc_pin: D1
lambda: |-
it.print(0, 0, id(font), "Hello World!");Configuration variables
model (Required): The model of the display. At present, only one option is available:
SSD1322 256x64
dc_pin (Required, Pin Schema): The DC pin.
reset_pin (Optional, Pin Schema): The RESET pin.
cs_pin (Optional, Pin Schema): The CS pin.
lambda (Optional, lambda): The lambda to use for rendering the content on the display. See Display Rendering Engine for more information.
update_interval (Optional, Time): The interval to re-draw the screen. Defaults to
5s.pages (Optional, list): Show pages instead of a single lambda. See Display Pages.
id (Optional, ID): Manually specify the ID used for code generation.
