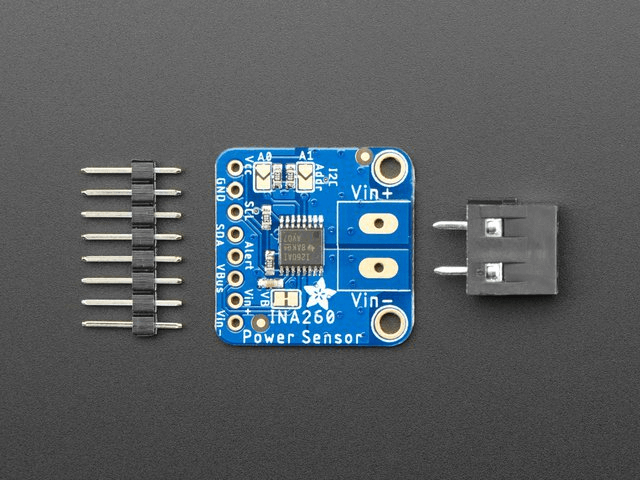

INA260 DC Current and Power sensor
The ina260 sensor platform allows you to use your INA260 DC Current and Power Sensor
(datasheet,
Adafruit_) sensors with ESPHome. The I²C Bus is
required to be set up in your configuration for this sensor to work.
# Example configuration entry
sensor:
- platform: ina260
address: 0x40
current:
name: "INA260 Current"
power:
name: "INA260 Power"
bus_voltage:
name: "INA260 Bus Voltage"
update_interval: 60sConfiguration variables
address (Optional, int): Manually specify the I²C address of the sensor. Defaults to
0x40.current (Optional): Use the current value of the sensor in amperes. All options from Sensor.
power (Optional): Use the power value of the sensor in watts. All options from Sensor.
bus_voltage (Optional): Use the bus voltage (voltage of the high side contact) value of the sensor in V. All options from Sensor.
update_interval (Optional, Time): The interval to check the sensor. Defaults to
60s.
