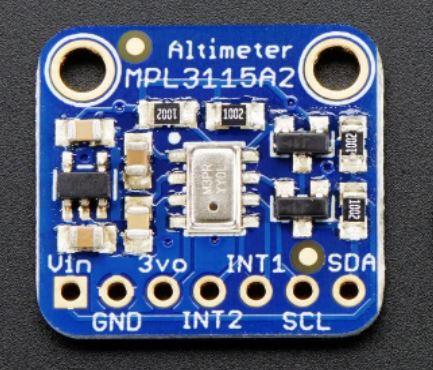

MPL3115A2 Barometric Pressure/Altitude/Temperature Sensor
The mpl3115a2 sensor platform allows you to use your MPL3115A2 atmospheric pressure sensors
(datasheet,
Adafruit_) temperature and pressure sensors with ESPHome. The I²C is
required to be set up in your configuration for this sensor to work.
# Example configuration entry
sensor:
- platform: mpl3115a2
temperature:
name: "MPL3115A2 Temperature"
pressure:
name: "MPL3115A2 Pressure"
update_interval: 10sConfiguration variables
The MPL3115A2 can be configured to output either pressure or altitude depending on which sensor is configured.
pressure (Optional): The information for the pressure sensor.
- All options from Sensor.
altitude (Optional): The information for the altitude sensor.
- All options from Sensor.
temperature (Optional): The information for the temperature sensor.
- All options from Sensor.
address (Optional, int): Manually specify the I²C address of the sensor. Defaults to
0x60.update_interval (Optional, Time): The interval to check the sensor. Defaults to
60s.
