Valve Component

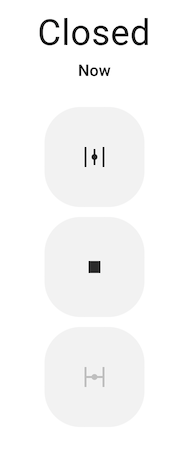

The valve component is a generic representation of valves in ESPHome. A valve can (currently) either be closed or open and supports three commands: open, close and stop.

ℹ️ Note

To use a valve in Home Assistant requires Home Assistant 2024.5 or later.

Base Valve Configuration

All valve config schemas inherit from this schema - you can set these keys for valves.

valve:
  - platform: ...
    device_class: water

Configuration variables:

• id (Optional, string): Manually specify the ID for code generation. At least one of id and name must be specified.
• name (Optional, string): The name for the valve. At least one of id and name must be specified.

ℹ️ Note

If you have a friendly_name set for your device and you want the valve to use that name, you can set name: None.

• device_class (Optional, string): The device class for the sensor. See https://www.home-assistant.io/components/valve/ for a list of available options.

• icon (Optional, icon): Manually set the icon to use for the valve in the frontend.

Advanced options:

• internal (Optional, boolean): Mark this component as internal. Internal components will not be exposed to the frontend (like Home Assistant). Only specifying an id without a name will implicitly set this to true.

• disabled_by_default (Optional, boolean): If true, this entity should not be added to any client’s frontend, (usually Home Assistant) without the user manually enabling it (via the Home Assistant UI). Defaults to false.

• entity_category (Optional, string): The category of the entity. See https://developers.home-assistant.io/docs/core/entity/#generic-properties for a list of available options. Set to "" to remove the default entity category.

• If Webserver enabled and version 3 is selected, All other options from Webserver Component.. See Webserver Version 3.

MQTT options:

• position_state_topic (Optional, string): The topic to publish valve position changes to.
• position_command_topic (Optional, string): The topic to receive valve position commands on.
• All other options from MQTT Component.

valve.open Action

This action opens the valve with the given ID when executed.

on_...:
  then:
    - valve.open: valve_1

ℹ️ Note

This action can also be expressed in lambdas:

auto call = id(valve_1).make_call();
call.set_command_open();
call.perform();

valve.close Action

This action closes the valve with the given ID when executed.

on_...:
  then:
    - valve.close: valve_1

ℹ️ Note

This action can also be expressed in lambdas:

auto call = id(valve_1).make_call();
call.set_command_close();
call.perform();

valve.stop Action

This action stops the valve with the given ID when executed.

on_...:
  then:
    - valve.stop: valve_1

ℹ️ Note

This action can also be expressed in lambdas:

auto call = id(valve_1).make_call();
call.set_command_stop();
call.perform();

valve.toggle Action

This action toggles the valve with the given ID when executed, cycling through the states close/stop/open/stop… This allows the valve to be controlled by a single push button.

on_...:
  then:
    - valve.toggle: valve_1

ℹ️ Note

This action can also be expressed in lambdas:

auto call = id(valve_1).make_call();
call.set_command_toggle();
call.perform();

valve.control Action

This action is a more generic version of the other valve actions and allows all valve attributes to be set.

on_...:
  then:
    - valve.control:
        id: valve_1
        position: 50%

Configuration variables:

• id (Required, ID): The valve to control.

• stop (Optional, boolean): Whether to stop the valve.

• state (Optional, string): The state to set the valve to - one of OPEN or CLOSE.

• position (Optional, float): The valve position to set.

  • 0.0 = 0% = CLOSED
  • 1.0 = 100% = OPEN

ℹ️ Note

This action can also be expressed in lambdas:

auto call = id(valve_1).make_call();
// set attributes
call.set_position(0.5);
call.perform();

Lambdas

From lambdas, you can access the current state of the valve (note that these fields are read-only, if you want to act on the valve, use the make_call() method as shown above).

• position : Retrieve the current position of the valve, as a value between 0.0 (closed) and 1.0 (open).

        if (id(my_valve).position == VALVE_OPEN) {
          // Valve is open
        } else if (id(my_valve).position == VALVE_CLOSED) {
          // Valve is closed
        } else {
          // Valve is in-between open and closed
        }

• current_operation : The operation the valve is currently performing:

        if (id(my_valve).current_operation == ValveOperation::VALVE_OPERATION_IDLE) {
          // Valve is idle
        } else if (id(my_valve).current_operation == ValveOperation::VALVE_OPERATION_OPENING) {
          // Valve is currently opening
        } else if (id(my_valve).current_operation == ValveOperation::VALVE_OPERATION_CLOSING) {
          // Valve is currently closing
        }

valve.on_open Trigger

This trigger is activated each time the valve reaches a fully open state.

valve:
  - platform: template  # or any other platform
    # ...
    on_open:
      - logger.log: "Valve is Open!"

valve.on_closed Trigger

This trigger is activated each time the valve reaches a fully closed state.

valve:
  - platform: template  # or any other platform
    # ...
    on_closed:
      - logger.log: "Valve is Closed!"
